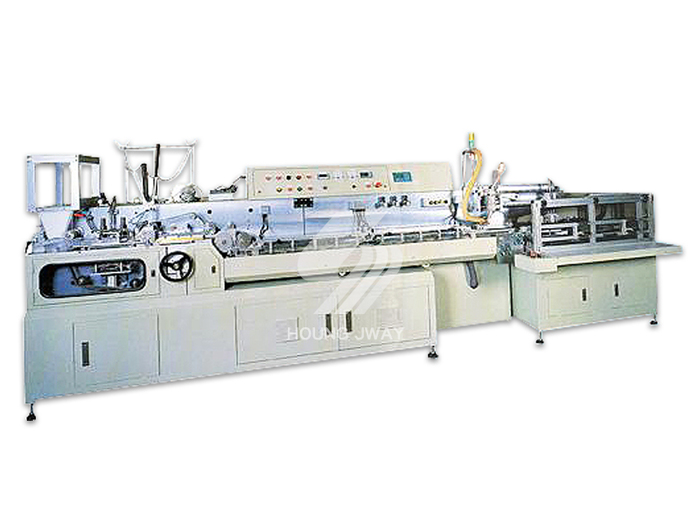

Cotton Swab Production MachinesHRM02
Product Specifications:
The auto machine included the main power section(forming
& drying) and packing section. Running control by PLC tack
it easy to manufactiring and packing.
Standard demand:
Stick: plastic, paper
Diameter:Φ2.5mm, length 73mm
Cotton: 120 grains
Forming the cotton top: 4.5mm
Machine speed: 2400 sticks/min Max
Production Speed : 2000 sticks/min
Packing : 100 sticks/ 20 package/min
Specification |
Forming machine |
Dry section |
Packing |
|---|---|---|---|
Length |
1250mm |
2870mm |
1240mm |
Width |
650mm |
650mm |
1050mm |
Height |
1600mm |
1470mm |
1100mm |
Rated power consumption |
4.5kw |
5kw |
0.35kw |
Air pressure |
6 bar |
6 bar |
6 bar |
Weight |
850kg |
450kg |
350kg |
